| الأنوية | 6 |
|---|---|
| الخيوط | 12 |
| تردد التعزيز | 5.1 GHz |
| المقبس | AM5 |
| الذاكرة المخبأة | 38MB |
نفس عائلة المنتج عبر القوائم المرتبطة.

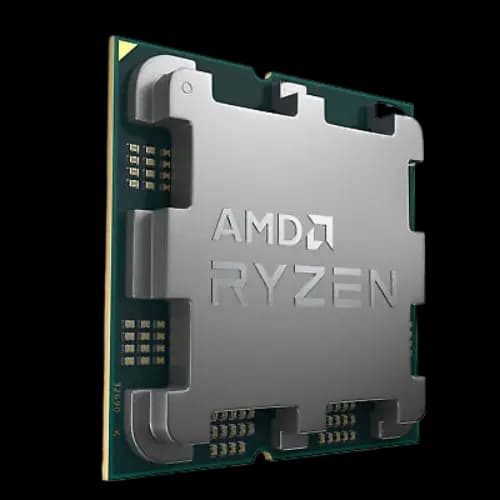

| Model | AMD Ryzen™ 5 7600 |
| Product Code | 100-000001015 |
| Series | Ryzen 7000 Series |
| Processor Architecture | Zen 4 |
| CPU Socket | AM5 |
| PCI Express® Version | PCIe® 5.0 |
| Total Cores | 6 |
| Total Threads | 12 |
| Multithreading (SMT) | Yes |
| Max. Boost Clock | Up to 5.3GHz |
| Base Clock | 3.8GHz |
| L1 Cache | 384KB |
| L2 Cache | 6MB |
| L3 Cache | 32MB |
| Graphics Model | AMD Radeon™ Graphics |
| Graphics Core Count | 2 |
| Graphics Frequency | 2200MHz |
| USB Type-C® DisplayPort™ Alternate Mode | Yes |
| Max of Memory Channels | 2 |
| System Memory Subtype | UDIMM |
| System Memory Type | DDR5 |
| Max. Memory | 128GB |
| Max Memory Speed | 2x1R: DDR5-5200 // 2x2R: DDR5-5200 // 4x1R: DDR5-3600 // 4x2R: DDR5-3600 |
| ECC Support | Yes(Requires mobo support) |
| Supporting Chipsets | A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850 |
| Default TDP | 65W |
| PPT | 88W |
| Max Operating Temperature | 95°C |
| Thermal Solution (PIB) | No |
| Unlocked for Overclocking | Yes |
| AMD EXPO™ Memory Overclocking Technology | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer Voltage Offsets | Yes |
| AMD Ryzen™ Master Support | Yes |
| CPU Boost Technology | Precision Boost 2 |
| Processor Technology for CPU Cores | TSMC 5nm FinFET |
| Processor Technology for I/O Die | TSMC 6nm FinFET |
| Instruction Set | x86-64 |
| Supported Technologies | AMD EXPO™ Technology , AMD Ryzen™ Technologies |
| Native USB 3.2 Gen 2 (10Gbps) | 4 |
| Native USB 3.2 Gen 1 (5Gbps) | 0 |
| Native USB 2.0 (480Mbps) | 1 |
| Native SATA Ports | 0 |
| Native PCIe® Lanes (Total/Usable) | 28 , 24 |
| Additional Usable PCIe Lanes from Motherboard | X670E: 12x Gen4 // X670: 12x Gen4 // B650E: 8x Gen4 // B650: 8xGen4 |
| NVMe Support | Boot , RAID0 , RAID1 , RAID10 |
| OS Support | Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit |
