| المقبس | LGA1851 |
|---|---|
| الشيبست | B860 |
| الحجم | Micro-ATX |
| منافذ الذاكرة | 2x DDR5 |
| أقصى ذاكرة | 128GB |
| Brand | Gigabyte |

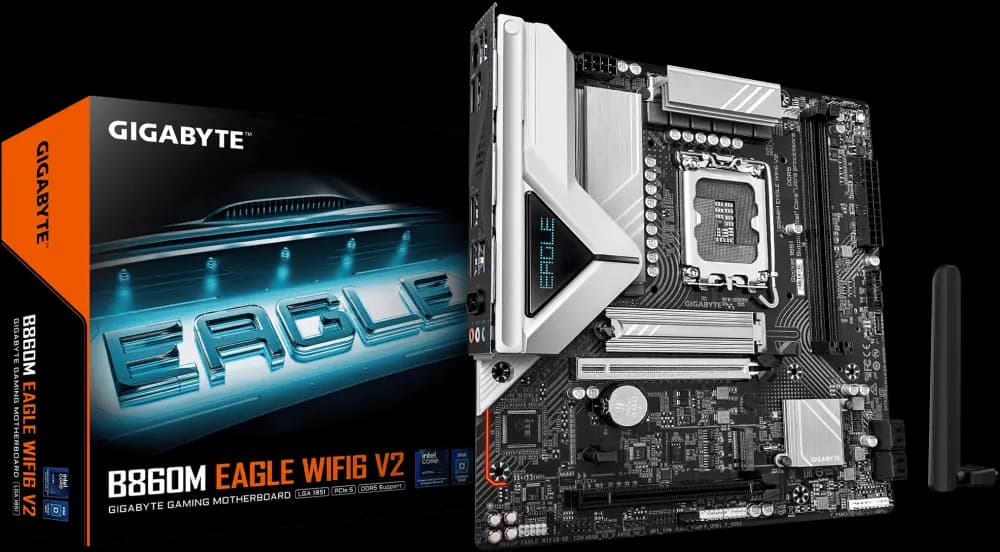

| Model | Gigabyte B860M EAGLE WIFI6 V2 |
| Product Number | 9MB86MEW2-00-G10 |
| CPU | LGA1851 socket: Support for Intel ® Core™ Ultra Processors // L3 cache varies with CPU |
| Chipset | Intel ® B860 Express Chipset |
| Memory | 2x DDR5 DIMM sockets supporting up to 128GB (64GB single DIMM capacity) of system memory |
| Memory Frequency | Support for DDR5 9066(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules |
| Memory Features | Dual channel memory architecture // Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) // Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules // Support for Extreme Memory Profile (XMP) memory modules |
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: 1x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz - 1x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz |
| Expansion Slots (CPU) | 1x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) |
| Expansion Slots (Chipset) | 1x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| Expansion Slots Compatibility | The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
| Storage | Supports 2x M.2 slots and // 4x SATA 6Gb/s ports |
| Storage (CPU) | 1x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU) |
| Storage (Chipset) | 1x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB) - 4x SATA 6Gb/s connectors |
| RAID Support | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| USB (Chipset) | 1x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 5x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 3x USB 2.0/1.1 ports on the back panel |
| USB (Chipset+USB 2.0 Hub) | 4x USB 2.0/1.1 ports available through the internal USB headers |
| Audio | Realtek® Audio CODEC: High Definition Audio // 2/4/5.1/7.1-channel // Support for S/PDIF Out |
| Ethernet | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| WIFI & Bluetooth | Realtek® Wi-Fi 6 RTL8851BE: WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 80MHz wireless standard |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector // 1 x 8-pin ATX 12V power connector // 1 x CPU fan header // 1 x CPU fan/water cooling pump header // 1 x system fan header // 1 x system fan/water cooling pump header // 3 x addressable RGB Gen2 LED strip headers // 2 x M.2 Socket 3 connectors // 4 x SATA 6Gb/s connectors // 1 x front panel header // 1 x front panel audio header // 1 x S/PDIF Out header // 1 x USB Type-C® header, with USB 3.2 Gen 1 support // 1 x USB 3.2 Gen 1 header // 2 x USB 2.0/1.1 headers // 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) // 1 x serial port header // 1 x Q-Flash Plus button // 1 x reset jumper // 1 x Clear CMOS jumper |
| Back Panel I/O Ports | 1 x PS/2 keyboard/mouse port // 1 x HDMI port // 1 x DisplayPort // 3 x USB 3.2 Gen 1 ports // 3 x USB 2.0/1.1 ports // 2 x antenna connectors (2T2R) // 1 x RJ-45 port // 3 x audio jacks |
| Features | Support for GIGABYTE Control Center (GCC) // Support for Q-Flash // Support for Q-Flash Plus // Support for Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) // LAN bandwidth management software |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection // Temperature detection // Fan speed detection // Water cooling flow rate detection // Fan fail warning // Fan speed control |
| Operating System | Windows 11 64-bit // Windows 10 64-bit |
| BIOS | 1x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | MicroATX Form Factor; 24.4x22.5cm |
