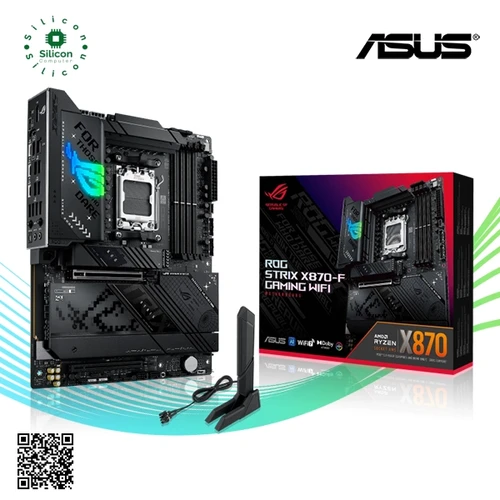

ASUS ROG STRIX X870-F GAMING WIFI

ASUS ROG STRIX X870-F GAMING WIFI

-----------------------------------------------------------

AMD X870 ATX Motherboard with 16+2+2 power stages, Dynamic OC Switcher, Core Flex, DDR5 support with AEMP, WiFi 7 with ASUS WiFi Q-Antenna, four M.2 slots, PCIe® 5.0 x16 SafeSlots with PCIe Slot Q-Release Slim, two USB4® ports, USB 10Gbps Type-C® with PD 3.0 up to 30W, AI Overclocking, AI Cooling II, AI Networking II, and Aura Sync RGB lighting.

Specifications

Model : ROG STRIX X870-F GAMING WIFI

SKU :90MB1IV0-M0EAY0

CPU :

• AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series

Chipset :

• AMD X870

Memory :

• 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s(OC

Graphics :

• 1 x DisplayPort**
• 1 x HDMI™ port***
• 2 x USB4® (40Gbps) ports support USB
• Type-C® display outputs****
   * Please refer to AMD CPU specifications.

Storage :

• Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports

Ethernet :

• 1 x Intel® 2.5Gb Ethernet

Wireless & Bluetooth :

• Wi-Fi 7 (Qualcomm QCNCM865 or MediaTek MT7927)* 2x2 Wi-Fi 7** (802.11be)
• Bluetooth® v5.4

USB :

• Rear USB (Total 12 ports)
  2 x USB4® (40Gbps) ports(2 x USB Type-C® with DP Alt mode)*
  6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C® with up to 30W PD Fast-charge)**
  4 x USB 5Gbps ports (4 x Type-A)
• Front USB (Total 9 ports)
  1 x USB 20Gbps connector (supports USB Type-C®)
  2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio :

• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*

Back Panel I/O Ports :

• 2 x USB4® (40Gbps) ports (2 x USB Type-C® with DP Alt mode)
• 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C® with up to 30W PD Fast-charge)**
• 4 x USB 5Gbps ports (4 x Type-A)
• 1 x DisplayPort
• 1 x HDMI™ port
• 1 x Wi-Fi module
• 1 x Intel® 2.5Gb Ethernet
• 2 x Audio jacks 
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™ button 
• 1 x Clear CMOS button 

Form Factor

• ATX Form Factor - 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
