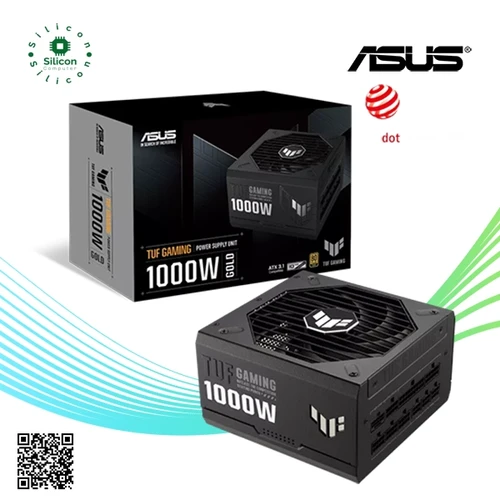

ASUS TUF Gaming 1000W Gold Fully Modular

ASUS TUF Gaming 1000W Gold Fully Modular is an Efficient, Resilient And Dependable PSU that’s Engineered for the long haul

Specifications

Model

• TUF Gaming 1000W Gold
• SKU: 90YE00S1-B0NA00

Intel Form Factor

• ATX12V

PFC Type

• Active PFC

ATX Standard

• ATX 3.1

Dimensions

• 150 x 150 x 86 mm

Efficiency

• 80Plus Gold

MTBF

• >120,000 hrs @ 40°C

Protection Features

• OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

• 100-240Vac

DC Output Voltage

• +3.3V +5V +12V -12V +5Vsb

Maximum Load

• 25A25A83.3A 0.8A 3A

Combined Load

• 130W 130W 1000W 9.6W 15W

Total Output

• 1000W

Cable Connectors

• MB 24/20-pin x 1
• CPU 4+4-pin x 2
• PCI-E 16-pin x 1 (both PSU & component side)
• PCI-E 8-pin x 4
• SATA x 5
• PERIPHERAL x 4

Package Contents

• Power Cord x 1
• Motherboard Power Cable x 1 (610mm)
• CPU Cable x 2 (650mm)
• PCI-E Gen 5.1 16-pin Cable x 1 (675mm)
• PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm)
• PCI-E 1-to-1 Cable x 2 (675mm)
• SATA 1-to-2 Cable x 1 (400+120mm)
• SATA 1-to-3 Cable x 1 (400+120+120mm)
• Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)
• TUF Gaming Cable Tie x 3
• User Manual x 1
