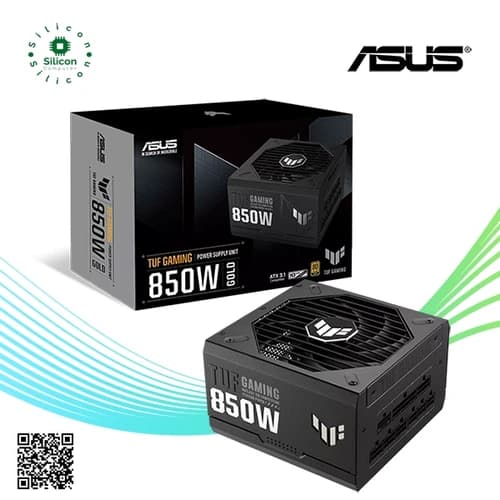

ASUS TUF Gaming 850W 80 Plus Gold Fully Modular

ASUS TUF Gaming 850W 80 Plus Gold Fully Modular Power Supply - ATX 3.0 Compatible 80+ Gold Certified - (90YE00S2-B0NA00)

Specifications

Model:

• TUF Gaming 850W Gold

Form Factor:

• ATX 12V

PFC Type:

• Active PFC

ATX Standard: ATX 3.1
Dimensions:

• 150 x 150 x 86 mm

Efficiency:

• 80 Plus Gold

MTBF:

• >120,000 hrs @ 40°C

Protection Features:

• OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials:

• ROHS

AC Input Range:

• 100-240Vac

DC Output Voltage:

• +3.3V: 25A

• +5V: 25A

• +12V: 70.8A

• -12V: 0.8A

• +5Vsb: 3A

Combined Load:

• +3.3V: 130W

• +5V: 130W

• +12V: 850W

• -12V: 9.6W

• +5Vsb: 15W

Total Output: 850W
Cable Connectors:

• MB 24/20-pin x 1

• CPU 4+4-pin x 2

• PCI-E 16-pin x 1 (both PSU & component side)

• PCI-E 8-pin x 3

• SATA x 5

• PERIPHERAL x 4

Package Contents:

• Power Cord x 1

• Motherboard Power Cable x 1 (610mm)

• CPU Cable x 2 (650mm)

• PCI-E Gen 5.1 16-pin Cable x 1 (675mm)

• PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm)

• PCI-E 1-to-1 Cable x 1 (675mm)

• SATA 1-to-2 Cable x 1 (400+120mm)

• SATA 1-to-3 Cable x 1 (400+120+120mm)

• Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)

• TUF Gaming Cable Tie x 3

• User Manual x 1

Weight:

• 2.38kg (single PSU)
