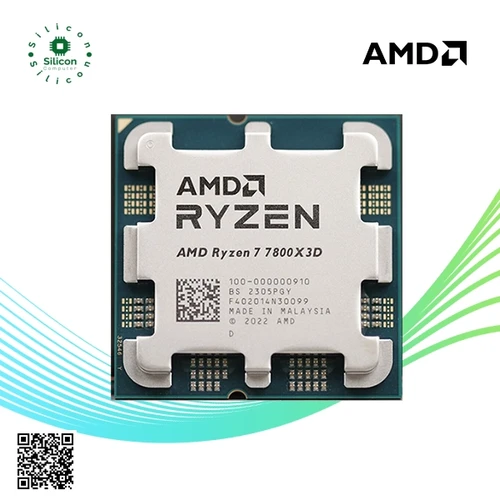

AMD Ryzen 7 7800X3D Desktop Processor Try

AMD Ryzen™ 7 7800X3D Desktop Processor Try
Features 8 Cores  16 Threads a base Clock of 4.2 GHz (boosting to 5 GHz) 96MB L3 Cache 120W TDP Supports DDR5 Memory up to 128 GB PCIe 5.0 Processor AM5

Specifications

• Name: AMD Ryzen 7 7800X3D

• Family: Ryzen

• Series: Ryzen 7000 Series

• Form Factor: Desktops, Boxed Processor

• Market Segment: Enthusiast Desktop

• AMD PRO Technologies: No

• Regional Availability: Global

• Former Codename: Raphael AM5

• Architecture: Zen 4

• Number of CPU Cores: 8

• Multithreading (SMT): Yes

• Number of Threads: 16

• Max. Boost Clock: Up to 5 GHz

• Base Clock: 4.2 GHz

• L1 Cache: 512 KB

• L2 Cache: 8 MB

• L3 Cache: 96 MB

• Default TDP: 120W

• Processor Technology for CPU Cores: TSMC 5nm FinFET

• Processor Technology for I/O Die: TSMC 6nm FinFET

• CPU Compute Die (CCD) Size: 71mm²

• I/O Die (IOD) Size: 122mm²

• Package Die Count: 2

• AMD EXPO™ Memory Overclocking Technology: Yes

• Precision Boost Overdrive: Yes

• Curve Optimizer Voltage Offsets: Yes

• AMD Ryzen™ Master Support: Yes

• CPU Socket: AM5

• Supporting Chipsets: A620, X670E, X670, B650E, B650, X870E, X870, B840, B850

• CPU Boost Technology: Precision Boost 2

• Instruction Set: x86-64

• Supported Extensions: AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64

• Thermal Solution (PIB): Not Included

• Recommended Cooler: Liquid cooler recommended for optimal performance

• Max. Operating Temperature (Tjmax): 89°C

• Launch Date: 04/06/2023

• OS Support:
  Windows 11 - 64-Bit Edition, Windows 10 - 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit
