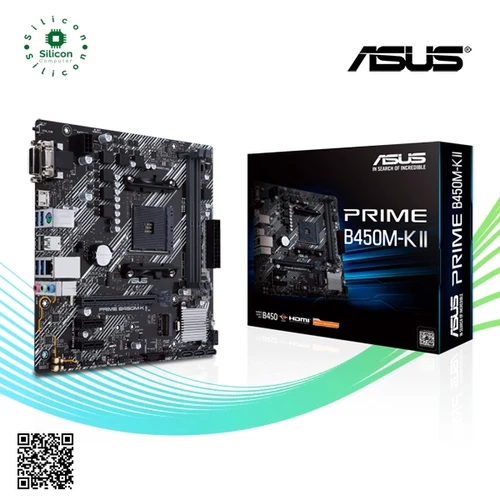

ASUS PRIME B450M-K II

ASUS PRIME B450M-K II

Model : PRIME B450M-K II

CPU

AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors *
Graphic

Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors *
1  x D-Sub
1  x DVI-D
1  x HDMI 2.0b
*Graphics specifications may vary between CPU types.

Expansion Slots

3rd/2nd/1st Gen AMD Ryzen™ Processors
1 x PCIe 3.0 x16 (x16 mode)
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0 x16 (x8 mode)
AMD Athlon™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0 x16 (x4 mode)
AMD B450 chipset
2 x PCIe 2.0 x1

Storage

Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports
Athlon™ with Radeon™ Vega Graphics Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)
AMD B450 chipset :
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10

LAN

Realtek® RTL8111H
ASUS LANGuard

Audio

Realtek ALC887/897 7.1-Channel High Definition Audio CODEC *
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
- LED-illuminated design
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
