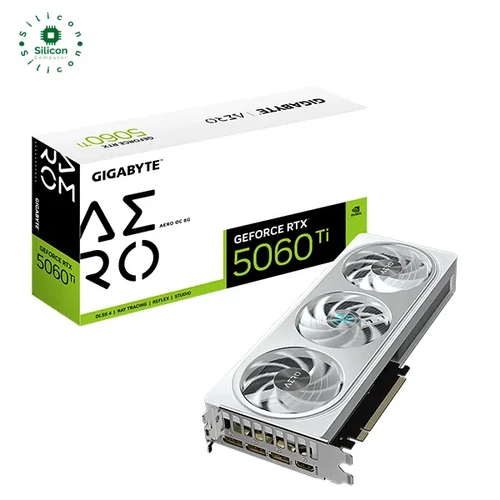

Gigabyte GeForce RTX 5060 Ti AERO OC 8G

Gigabyte GeForce RTX 5060 Ti AERO OC 8G GPU  GDDR7 Memory, WINDFORCE Cooling, DLSS 4

Description

Graphics Processing

• GPU Model: NVIDIA® GeForce RTX™ 5060 Ti
• Core Clock: 2647 MHz (Reference: 2572 MHz)
• CUDA Cores: 4608
• Memory Clock: 28 Gbps
• Memory Size: 8 GB
• Memory Type: GDDR7
• Memory Bus: 128-bit
• Card Bus Interface: PCIe 5.0

Display Outputs

• Max Digital Resolution: 7680 x 4320 (8K)
• Multi-Monitor Support: 4 displays simultaneously
• Ports:
  • 3 x DisplayPort 2.1b
  • 1 x HDMI 2.1b

Physical Specifications

• Card Dimensions (L x W x H): 281mm x 117mm x 40mm
• PCB Form Factor: ATX
• Power Connectors: 1 x 8-pin

Performance & Compatibility

• DirectX Support: 12 API
• OpenGL Support: 4.6
• Recommended PSU: 650W
• Power Consumption: Typically 160–200W (varies by design)
