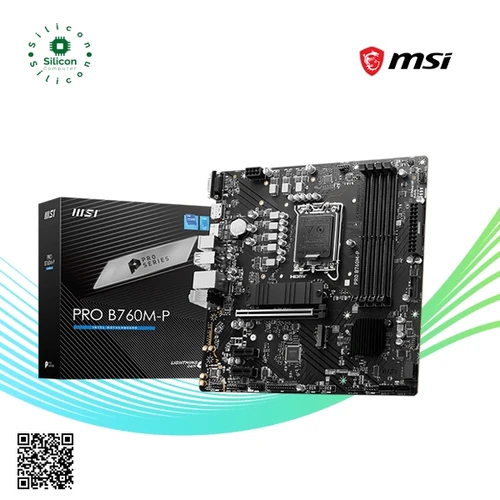

MSI PRO B760M-P

MSI PRO B760M-P

Chipset

• INTEL B760

CPU

• Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700

Memory

• 4x DDR5, Maximum Memory Capacity 256GB
• Memory Support DDR5 6800+(OC)/ 6600(OC

Onboard Graphics

• 1x HDMI™
• Support HDMI™ 1.4, maximum resolution of 4K 30Hz*
• 1x DisplayPort
• Support DP 1.4, maximum resolution of 4K 60Hz*
• 1x VGA

Slot

• 1x PCI-E x16 slot
• 2x PCI-E x1 slot

Audio

• Realtek® ALC897 Codec
• 7.1-Channel High Definition Audio

Storage

• 2x M.2
• M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
• M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
• 4x SATA 6G

USB

• 4x USB 2.0 (Rear)
• 4x USB 2.0 (Front)
• 1x USB 5Gbps Type A (Rear)
• 2x USB 5Gbps Type A (Front)
• 1x USB 10Gbps Type C (Rear)

LAN

• Realtek® RTL8111H Gigabit LAN

Internal IO

• 1x Power Connector(ATX_PWR)
• 1x Power Connector(CPU_PWR)
• 1x CPU Fan
• 2x System Fan
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x Printer Port (JLPT)
• 1x Com Port (JCOM)
• 1x RGB LED connector(JRGB)
• 1x TPM pin header(Support TPM 2.0)
• 4x USB 2.0 ports
• 2x USB 5Gbps Type A ports

LED FEATURE

• 4x EZ Debug LED
