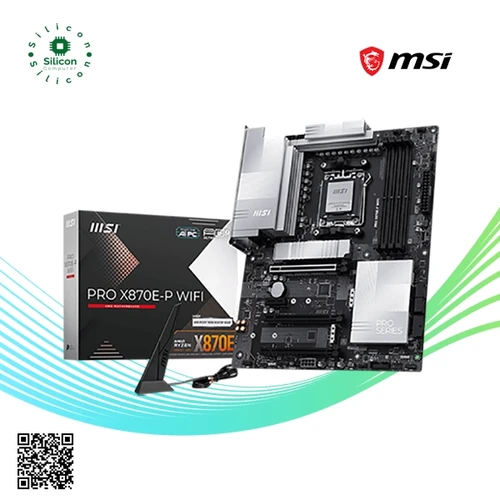

MSI PRO X870E-P WIFI

MSI PRO X870E-P WIFI

SPECIFICATIONS

Chipset

• AMD X870E

CPU

• Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
• Socket AM5

Memory

• 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
• Memory Support DDR5 8200 - 5600 (OC)

Onboard Graphics

• 1x HDMI™
• Support HDMITM 2.1, maximum resolution of 4K 60Hz*
• 1x Type-C DisplayPort
• USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz*

Slot

• 3x PCI-E x16 slot
• 1x PCI-E x1 slot

Audio

• Realtek® ALC897
• 7.1-Channel High Definition Audio

Storage

• 3x M.2
• M.2_1 Source (From CPU) supports up to PCIe 5.0 x4

USB

• 4x USB 2.0 (Rear)
• 6x USB 2.0 (Front)
• 2x USB 5Gbps Type A (Rear)
• 4x USB 5Gbps Type A (Front)
• 2x USB 10Gbps Type A (Rear)
• 1x USB 10Gbps Type C (Front)
• 1x USB 20Gbps Type C (Rear)
• 1x USB 40Gbps Type C (Rear)

LAN

• Realtek® 8126VB 5G LAN
• WIRELESS LAN & BLUETOOTH

Wi-Fi 7

• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps

OPERATING SYSTEM

• Support for Windows® 11 64-bit
