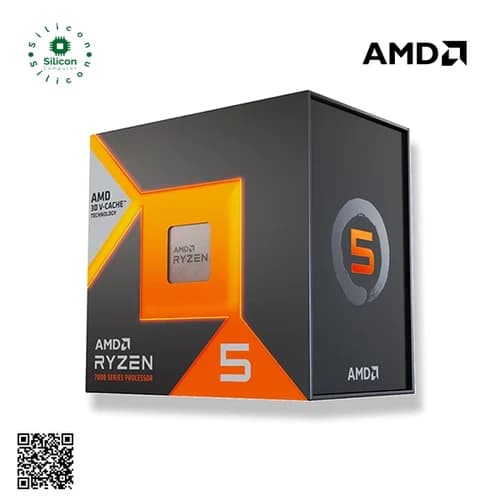

Ryzen 5 7500X3D Desktop Processor BOX

Ryzen 5 7500X3D Desktop Processor BOX

Specifications

Name

• AMD Ryzen™ 5 7500X3D

Family

• Ryzen

Series

• Ryzen 7000 Series

Form Factor

• Desktops, Boxed Processor

Market Segment

Enthusiast Desktop

AMD PRO Technologies

• No

Regional Availability

• NA , EMEA

Former Codename

• Raphael AM5

Processor Architecture

• Zen 4

# of CPU Cores

• 6

Multithreading (SMT)

• Yes

# of Threads

• 12

Max. Boost Clock

• Up to 4.5 GHz

Base Clock

• 4 GHz

L1 Cache

• 384 KB

L2 Cache

• 6 MB

L3 Cache

• 96 MB

Default TDP

• 65W

Processor Technology for CPU Cores

• TSMC 5nm FinFET

Processor Technology for I/O Die

TSMC 6nm FinFET

CPU Compute Die (CCD) Size

71mm²

I/O Die (IOD) Size

122mm²

Package Die Count

• 2

AMD EXPO™ Memory Overclocking Technology

• Yes

Precision Boost Overdrive

• Yes

Curve Optimizer Voltage Offsets

• Yes

AMD Ryzen™ Master Support

• Yes

CPU Socket

• AM5

Supporting Chipsets

• A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850

CPU Boost Technology

Precision Boost 2

Instruction Set

x86-64

Supported Extensions

• AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

Thermal Solution (PIB)

• Not Included

Recommended Cooler

Liquid cooler recommended for optimal performance

Max. Operating Temperature (Tjmax)

89°C

Launch Date

• 11/12/2025

*OS Support

• Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
